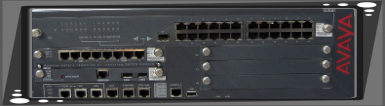

Avaya G350 Media Gateway

The Avaya G350 Media Gateway is a high performance converged telephony and networking device that sits in a small branch location, providing all the infrastructure needs in one box.
Click here for Data Sheet

Avaya G430 Media Gateway

The Avaya G430 Media Gateway is a multipurpose Media Gateway targeting small and medium branches of 1 to 150 users. The G430 Media Gateway supports two expansion modules to support varying branch office sizes. It works in conjunction with Communication Manager IP telephony software running on Avaya S8xxx Servers to help deliver intelligent communications to enterprises of all sizes.
Click here for Data Sheet

Avaya G450 Media Gateway

The Avaya G450 Media Gateway is a multipurpose media gateway that can be deployed in medium to large sized branch locations.  It works in conjunction with Avaya Communication Manager IP telephony software running on Avaya S87XX Servers to help deliver intelligent communications to enterprises of all sizes.
Click here for Data Sheet

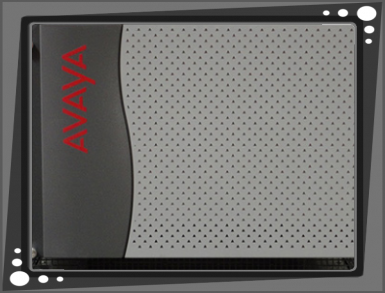

Avaya G650 Media Gateway

The G650 Media Gateway features an 8U high, 14-slot chassis that can be installed in industry standard EIA-310 19", 24", or 600 mm ETSI open or closed racks. The G650 can accommodate a range of analog, digital, ISDN, and IP (over the LAN) phone station configurations, with voice transport options over IP, analog, TDM, or ATM. Available dual redundant, load-sharing power supplies with AC/DC inputs provide enhanced system reliability.
Click here for Data Sheet

Avaya G700 Media Gateway

The G700 Media Gateway is a 19-inch 2U chassis containing 4 media module bays and one network expansion module bay. The G700 Media Gateway contains an integrated Voice over Internet Protocol (VoIP) engine which can support up to 64 G.711 TDM/IP simultaneous calls, or 32 compression codec (G.729, G.726A or G.723) TDM/IP simultaneous calls.
Click here for Data Sheet
