Cat5e Keystone Jack

Products > Structured Cabling > Copper Cables Cat5e

Cat5e shielded Keystone Jack Cat5e Tool-less Cat5e V-max Keystone Jacks

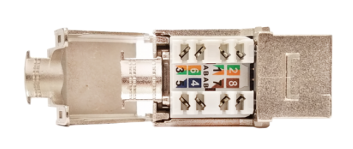

CAT5E Shielded Keystone Jack Vertical Cable CAT5E Shielded Jacks protect the cable connection from EMI. As do all Vertical Cable jacks, these Jacks feature flexible tabs that snap in and out of patch panel and wall plate ports. The IDCs are color coded with both wiring codes, A and B. Physical Specification • Dimension (mm) 19.35H x 21W x 46.83D Housing Material • Housing & Cap Polycarbonate Contact Material • 110/Krone Type Contacts 100μ Inch nickel plated over phosphor bronze • IDC Operating Life Minimum 250 re-terminations • Jack Contact Phosphor bronze, 50μ inch gold plating over nickel • Jack Operating Life Minimum 750 insertions • Compatibility 23 to 26 AWG (solid) • Shielded Cover 50~60μ inch nickel plated over phosphor bronze	Electrical • Dielectric Strength 1000V RMS for 1min • Insulation resistance 10mΩ min • Contact Resistance 2mΩ per contact • Temperature Range -10°C to 60°C max • Humidity 10%~65% AN Features: • 360o Shielding Structure to prevent EMI • 110/Krone Type Contacts (Terminal Block) • Color Coded for 568A and 568B • EIA/TIA 568A/B standards • ANSI/TIA-568-C.2 , ISO/IEC11801, EN50173-1 • Thermoplastic ABS Housing • UL Listed, ETL Listed, RoHS Compliant • 50 per bag

CAT5E Tool-less Keystone Jacks The Vertical Cable Tool-less Keystone Jack is suitable for data and telephony connections. It is designed to fit in standard keystone wall plates and blank patch panels. Self-terminating (tool-less) no punch down tool needed. Compatible with 24 AWG solid copper conductors. It conforms to ANSI/TIA/EIA T568B.2 standards. UL Listed. Physical Specifications • Dimension (mm) 20.0H x 19.0W x 31.6D Housing Materials • Housing ABS+PVC (UL 94 V-0) • IDC Housing Polycarbonate (UL 94 V-0) Contact Material • Krone Type Contacts Phosphor Bronze with 50-60 micro inch nickel plated • Contact Area Minimum 3mm 50 micro inch Gold plated • Operating Life Minimum 750 insertions • Compatibility 24 AWG Solid • IDC Holder Cover ABS (UL 94 V-0) • Key Lock ABS (UL 94 V-0)	Applications: • Modular connector for Category 5E UTP structured cabling systems • High megabit applications such as Gigabit Ethernet and 622 Mbps ATM • 10Base-T Ethernet • 155/622 Mbps ATM • 4/16 Mbps Token Ring • 100VG-Any LAN Features: • Available in blue and white for easy Identification • Category5E UL Verified • Tool-less (no punch down tool required) • ANSI/EIA/TIA 568A/B.2 standard • ISO/IEC11801 2nd edition EN50173 2nd edition • Color coded for 568A and 568B • UL94V-0 Thermoplastic ABS Housing • UL Listed, ETL Listed, RoHS Compliant • 50 per bag

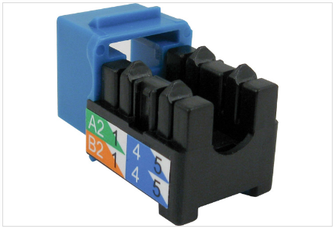

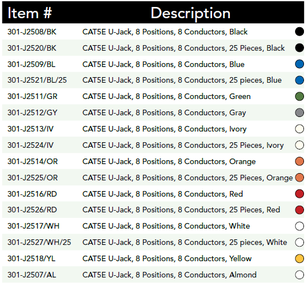

CAT5E V-Max Keystone Jacks Vertical Cable CAT5E Jacks are the perfect fit for computer network and Ethernet CAT5E modular connections. The jacks feature flexible tabs that snap in and out of patch panel, surface mount box and wall plate ports. Additionally, these jacks fit and work with the I-Punch tool. The tool terminates all conductors in one punch and saves the installer the lengthy process of individual wire termination. Physical Specifications • Dimension (mm) 19.86H x 17W x 31D Housing Materials • Housing UL 94V-0 self extinguished plastic • DC Housing UL 94V-0 self extinguished plastic Contact Material • IDC 110 Contacts Phosphor bronze, nickel plated • Nose Contacts 50μ of gold plating over nickel • Operating Life Minimum 750 insertions • Compatibility 22 to 26 AWG Solid • PCB FR-4, 1.6mm double sided • Cap UL 94V-0 rated	Applications: • 10Base-T Ethernet • 155/622 Mbps ATM • 4/16 Mbps Token Ring • 100VG-Any LAN Features: • Available in various colors for easy Identification • Category-5E UL Verified • 8 Conductor nickel plated phosphor bronze contacts • 110-IDC Contacts (Terminal Block) • Narrow connectors allow high port density in small areas • ANSI/TIA-568-C.2, FCC, 3P • ISO/IEC11801 2nd edition EN50173 2nd edition • Color coded for 568A and 568B • UL94V-0 Thermoplastic ABS Housing • UL Listed, ETL Listed, RoHS Compliant • 50 per bag
