Vertical

Products > Cabinets and Racks

1U 19” Single-Sided Vented Shelf 2U 19” Single-Sided Vented Shelf 4U Hinged Type Wall Mount Brackets 9U Wall Mount Enclosure 12U Wall Mount Cabinet 2 Post Standing Rack 4 Post Standing Rack Vertical Cable Manager 1U Horizontal Cable Manager 2U Horizontal Cable Manager

1U 19” Single-Sided Vented Shelf Vertical Cable offers a wide range of non-sliding shelves. They all can be center mounted in any Vertical Cable Racks, Wall Mounts, and Enclosures. Available in various heights, the 1U, 2U and 3U Vented Shelves are light but solid. Vertical Cable also offers an Adjustable Depth Shelf that extends up to 42’’. This shelf gives the installer flexibility and accommodates for future installation add-ons.	Features: 1 piece NON vented single-sided shelves are center mounted between the upright rails of all standard 19 panel width open racks, server enclosures and network enclosures. Comes with 4 sets of washers, screws, and cage nuts.	Height Width Depth Color Weight Capacity 1.75″ 19.00″ 12.00″ Black 5LB 50LB

2U 19” Single-Sided Vented Shelf Vertical Cable offers a wide range of non-sliding shelves. They all can be center mounted in any Vertical Cable Racks, Wall Mounts, and Enclosures. Available in various heights, the 1U, 2U and 3U Vented Shelves are light but solid. Vertical Cable also offers an Adjustable Depth Shelf that extends up to 42’’. This shelf gives the installer flexibility and accommodates for future installation add-ons.	Features : 1 piece NON vented single-sided shelves are center mounted between the upright rails of all standard 19 panel width open racks, server enclosures and network enclosures. Comes with 4 sets of washers, screws, and cage nuts	Height Width Depth Color Weight Capacity 3.50″ 9.00″ 15.75″ Black 5LB 50LB

4U Hinged Type Wall Mount Brackets Vertical Cable’s Wall Mount Brackets accomodate all standard 19’’ units and accessories, such as patch panels. These Brackets are a great solution for small mounting installations where an entire rack is not necessary.	Features : · Fits a 96 port 4U standard 19” patch panel · Bracket made of 2mm thick steel, painted black · Hinge made of 1.5mm thick steel, painted black · Comes with 16 M5 screws (5mm x 15mm)

9U Wall Mount Enclosure 9U Wall Mount Enclosure – Needs assembly Finish and Color: · Enclosure body and front door is finished with a phosphatized treatment and electrostatic powder paint Epoxy / Polyester coat, Black	Enclosure: • Includes 1 fan with USA plug and wire • 10 sets M6 screws and nuts • 5mm tempered glass front door • Front access	Height Width Depth Color Weight Capacity 18″ 21.25″ 17.75″ Black 38LB 66LB

12U Wall Mount Enclosure 12U Wall Mount Enclosure- Needs Assembly Finish and Color: · Enclosure body and front door is finished with a phosphatized treatment and electrostatic powder paint Epoxy / Polyester coat, Black	Enclosure: · Includes 1 fan with USA plug and wire · 10 sets M6 screws and nuts · 5mm tempered glass front door · Front access	Height Width Depth Color Weight Capacity 23.25″ 21.25″ 17.75″ Black 45LB 66LB

Open Rack Enclosures – 2 Post

Vertical Cable’s sturdy 2 or 4 Post Racks are made of hard impact aluminum. The Racks are compatible with all standard 19’’ units and accessories. The rack posts are pre drilled for #12-24 screws, and marked in unit increments

Features :

· Aluminum frame

· Pre drilled holes for #12-24 screws

· Includes 28 screws and washers

· Highly functional and stylish, value packed and multiple-vendor compatibility

· Unit markings on front and rear posts

Open Rack Enclosures – 4 Post

Features :

· Aluminum frame

· Pre drilled holes for #12-24 screws

· Adjustable depth

· Includes 10 screws and washers

· Highly functional and stylish, value packed and multiple-vendor compatibility

· Unit markings on front and rear posts

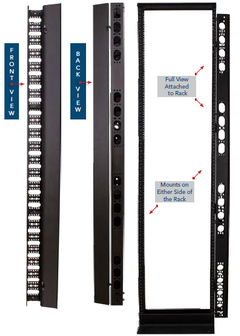

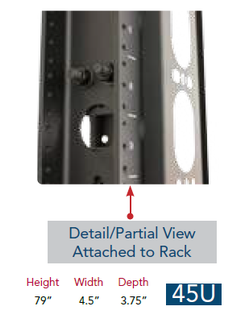

45U Vertical Wire Manager Vertical Cable offers a full Vertical Wire Manager compatible with our 2 or 4 Post Rack. It is composed of full height wire managing sections that help installers systematically organize cable. The material is great quality, heavy duty.	Features: · Fits 2 and 4 post open racks · For the 047-WOS racks only (rack not included) · Made of durable steel and features dual hinged front panel for easy access · Mounts on either side of a rack

1U Horizontal Wire Manager Closed Design Vertical Cable offers a variety of Horizontal Wire Managers, both in 1U and 2U. The organizers feature different sorting styles and come at various price points.	Features: • Has a durable black powder coated finish. • Features a closed design that covers the cable • Convenient universal mounting • Mounts on any standard 19” rack or wall mount	Height Width Depth Weight 1 3/4” 19” 3” 2 LBS

2U Horizontal Wire Manager Closed Design Vertical Cable offers a variety of Horizontal Wire Managers, both in 1U and 2U. The organizers feature different sorting styles and come at various price points.	Features: • Has a durable black powder coated finish • Features a closed design that covers the cable • Convenient universal mounting • Mounts on any standard 19” rack or wall mount	Height Width Depth Weight 3.5” 19” 3” 2 LBS
