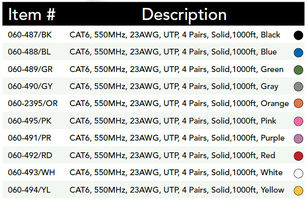

CAT6 Solid (UTP)
CAT6 550MHz PVC Bulk Cable provides even higher performance than our CAT5E Cable, further reducing crosstalk. The cable includes a divider that separates the twisted pairs from one another.
CAT6 is standard for Gigabit Ethernet installations. Vertical Cable Twisted Pair cable cuts and strips well and comes with a ripcord. The color-striped pairs are easily identifiable for quick and easy termination. This product is UL Listed. This cable is listed with ETL and fully supports HDBaseT specifications.

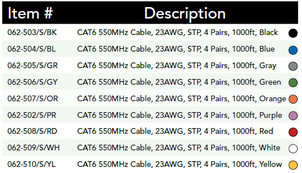

CAT6 Solid (STP)
Vertical Cable CAT6 550MHz Shielded Cable is essential for high speed network installations in interference prone areas. In contrast to its CAT6 Unshielded counterpart, CAT6 Shielded cable blocks out electromagnetic interference or EMI, which can slow down and degrade proper signal connection.
EMI is caused by electrical circuits present around the cable from just about anything: elevators, power lines, electric motors, fluorescent lights, thermostats, air conditioners or microwaves. In addition, this CAT6 fully supports HDBaseT specifications.
CAT6 Outdoor Rated With Messenger, Aerial Applications
In addition to having an outdoor UV rating, Vertical Cable CAT6 with Messenger includes a high strength exterior supporting wire, called “Messenger.”
Ironically the messenger does not transmit any messages or data, and its sole purpose is to provide stiffness and strength to the cable. The cable is also available with a shield.

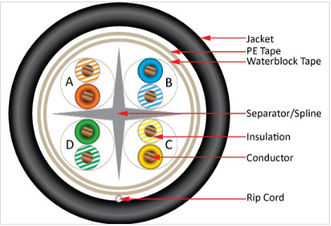

CAT6 Direct Burial, CMXT
Vertical Cable CAT6 CMXT features a water block tape for protection against water/ moisture. This cable has a tough LLDPE jacket which allows the cable to be buried directly underground.
Conduit is recommended for an extended life time. This cable can also be used for CAT6 cell tower applications, as the LLDPE jacket has a high level of UV resistance, shielded version is available.
CAT6 Outdoor Rated, CMX
In comparison to riser rated CAT6, which is made for indoor applications only, the CMX can be installed outside, above ground, and exposed to the sun.
Vertical Cable CAT6 600MHz CMX has the highest UV resistance out of all Vertical Cable outdoor cables. The jacket is LLDPE. The 100% solid bare copper twisted pairs cut and strip just as well, and come with a ripcord.
