Cat5e

Products > Structured Cabling > Copper Cables Cat5e

Cat5e STP Cat5e UTP Cat5e Outdoor Aerial Cat5e Burial Cable

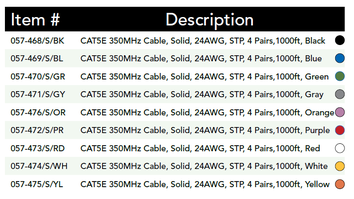

CAT5E Solid (STP) Vertical Cable CAT5E 350MHz Shielded Cable is vital for installations in interference prone areas. In contrast to its CAT5E Unshielded counterpart, shielded cable blocks out electromagnetic interference or EMI, which can slow down proper signal flow. EMI is caused by electrical circuits present around the cable from just about anything: elevators, power lines, electric motors, fluorescent lights, thermostats, air conditioners or microwaves.	Features : High-Performance Data Cable 350MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI Category-5E Shielded Twisted Pair Easily Identified Color-Striped Pairs 24AWG Solid Copper Conductors Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket ETL Listed, RoHS Compliant 1000ft Pull Box

CAT5E Solid (UTP) CAT5E 350MHz Bulk Cable is the industry standard for data communication applications: structured cabling and computer networks as well as Ethernet. Compared to CAT3 Cable, CAT5E has more twists, which allows for less interference and better signal quality. In addition, the CAT5E allows faster networking and longer cable runs. This Vertical Cable product exceeds the CAT5E 100MHz standard. This CAT5E also fully supports HDBaseT specifications.	Features: • High-Performance Data Cable • 350MHz Bandwidth for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI • Category-5E Unshielded Twisted Pair • Easily Identified Color-Striped Pairs • 24AWG Solid Copper Conductors • Exceeds TIA/EIA-568C.2, ISO/IEC 11801 • Riser Rated PVC Jacket • ETL Listed, RoHS Compliant • 1000ft Pull Box

CAT5E Outdoor Cable with Messenger for Aerial Applications In addition to having an outdoor rating, the CAT5E with Messenger includes a high strength exterior supporting wire called “Messenger.” Ironically the messenger does not transmit any messages or data. Its sole purpose is to provide stiffness and strength to the cable. This cable is intended for aerial pole-to-pole installations. This cable is also available with an aluminum shield for high EMI areas.	Features : Ideal for Outdoor Aerial Applications Galvanized Steel Messenger for Support Easily Identified Color-Striped Pairs 24AWG Solid Copper Conductors Exceeds TIA/EIA-568C.2 Standards ETL Listed RoHS Compliant 1000ft Wooden Spool

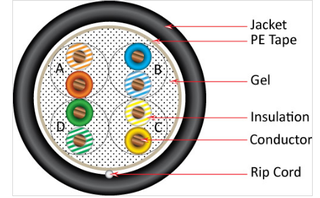

CAT5E Direct Burial, CMXF (UTP, STP) This type of CAT5E direct burial cable features a flooded gel core, which helps protect the cable from water underground. This cable features a tough LLDPE jacket and can be buried directly underground. For a longer cable lifetime, conduit is recommended. This cable also comes in a shielded variety to protect from EMI in highly wired areas. This cable is not recommended for use in cell towers, as the inside gel may leak out when the cable is installed vertically.	Features : High-Performance Data Cable 350MHz Bandwidth for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI Category-5E Unshielded Twisted Pair Easily Identified Color-Striped Pairs 24AWG Solid Copper Conductors Exceeds TIA/EIA-568C.2, ISO/IEC 11801 CAN/CSA -C22.2 No. 214 Direct Burial Gel Filled (Flooded Core) ETL Listed, 1000ft Pull Box, or Spool
